멋쟁이사자처럼부트캠프 Unity 게임 개발 3기 70일차



목차

---

Tic Tac Toe 서버 만들기

25.03.10

멀티 플레이 구현

>> Chatting Panel Prefab화 후, Hierarchy에서 삭제

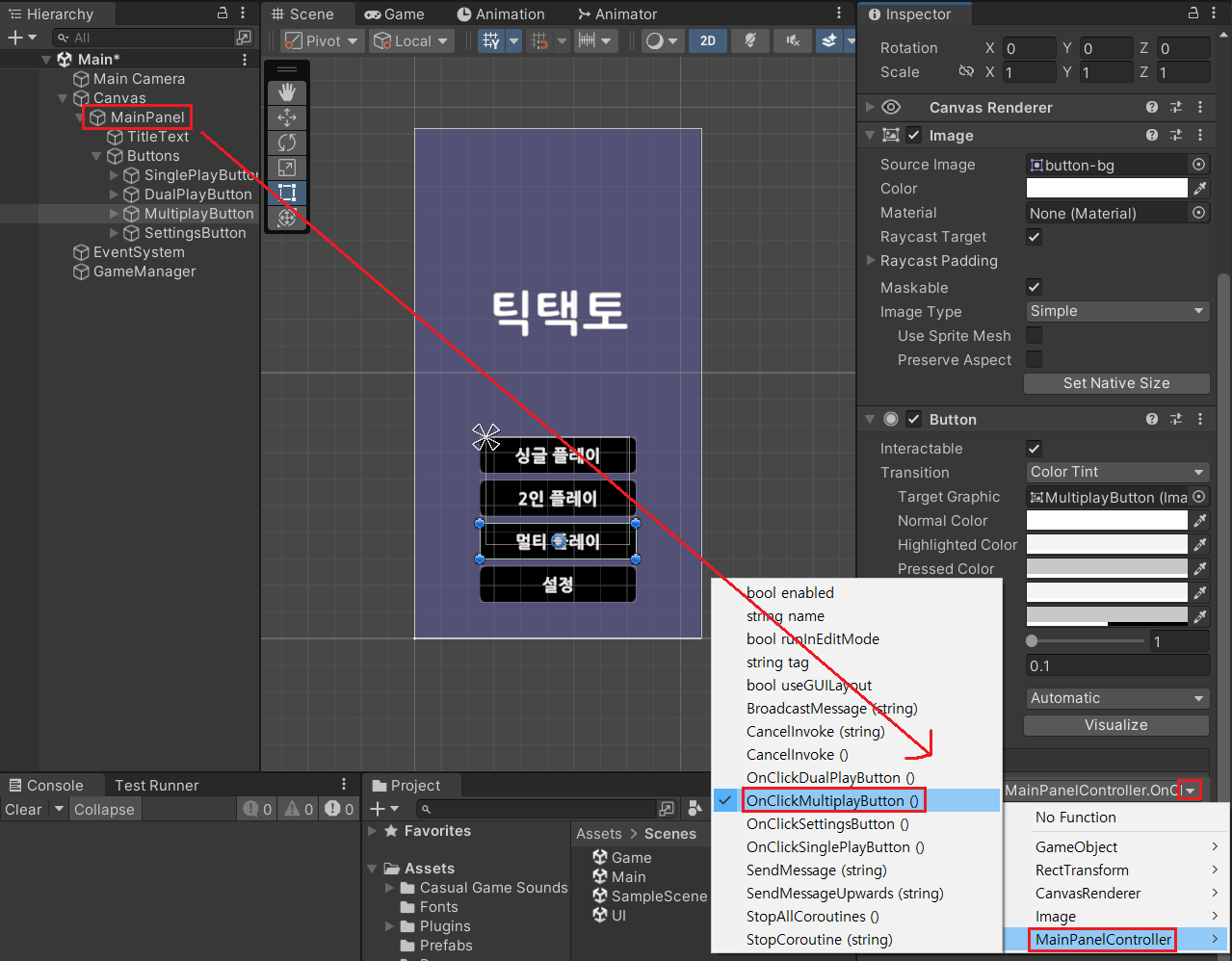

>> 'Main Panel'의 'Buttons'에 있는 'Score Button'을 'MultiplayButton'으로 수정

: Text도 '멀티 플레이'로 변경, OnClick()에 함수 바인딩



>> 기존 코드 개선

: 멀티 플레이를 적용하기에 더 용이하도록 개선

• MainPanelController.cs
• GameManager.cs
• AIController.cs --> 삭제
• Constants.cs
• BlockController.cs
• MinimaxAIController.cs
• BattlePanelController.cs --> 삭제



>> GameLogic.cs 생성

: GameManager에서 GameLogic을 분리, 상태 패턴 활용



클라우드 서버 연결

>> MongoDB

1. Create a cluster

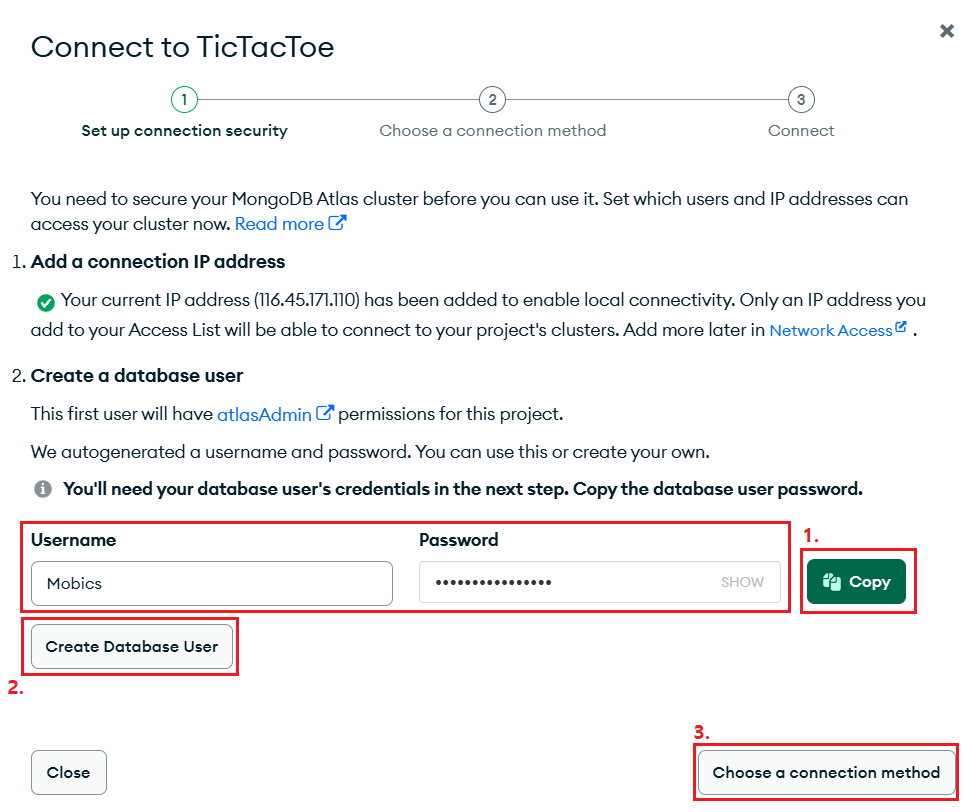

2. Create a database user

: Username과 Password 생성

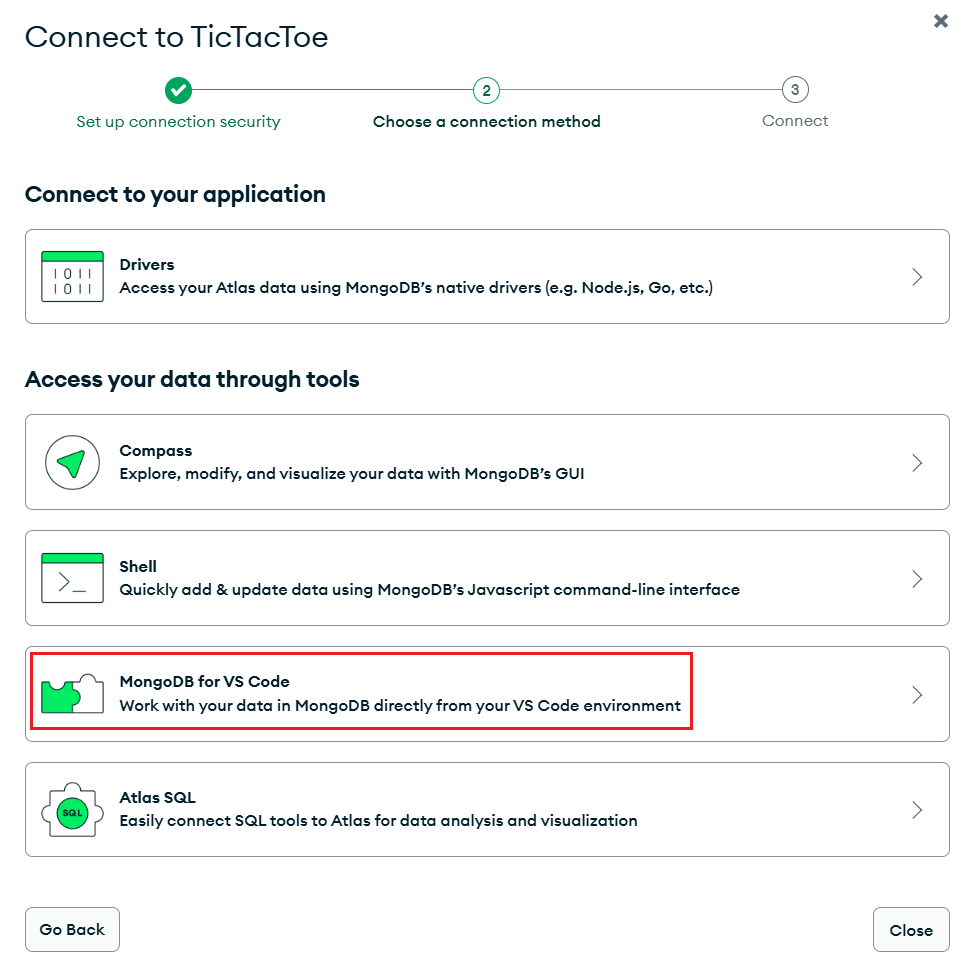

3. Connect

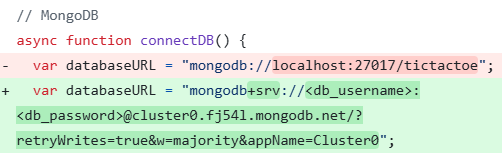

4. 나온 deployment 링크를 복사하여 app.js파일의 MongoDB 관련 ConnectDB()에 복붙

--> 아래 사진은 예시, <db_username>과 <db_password>에 <> 없이 각각 username과 password를 넣어야 한다.



>> Koyeb

1. 회원가입 후, Create Service --> Git 선택



2. Github로 가서 tictactoe-server git의 HTTPS주소를 복사, public GitHub repository에 붙여넣기

: public repository가 아니라면 Github와 연결하여 선택 가능

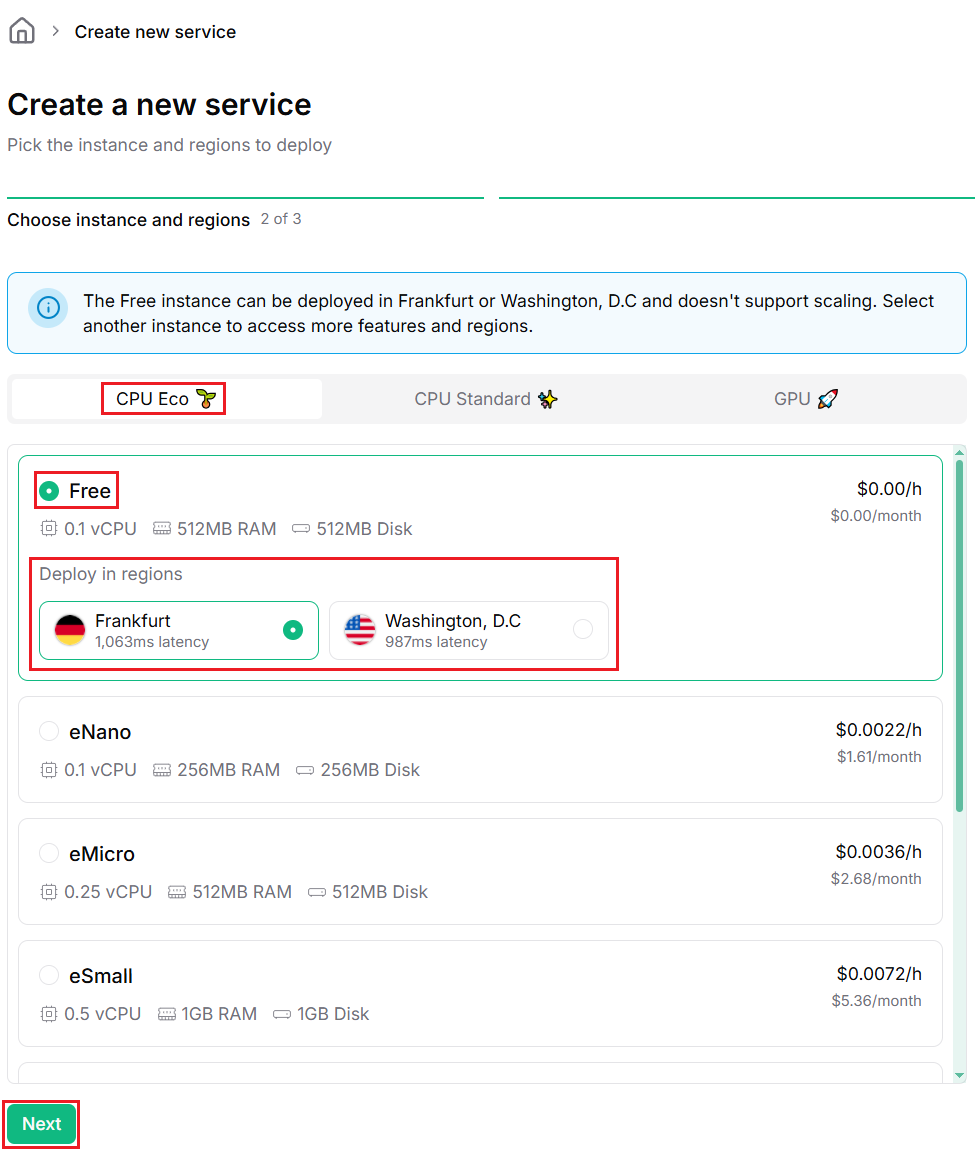

3. Free 버전 선택

: latency를 보고 국가 선택

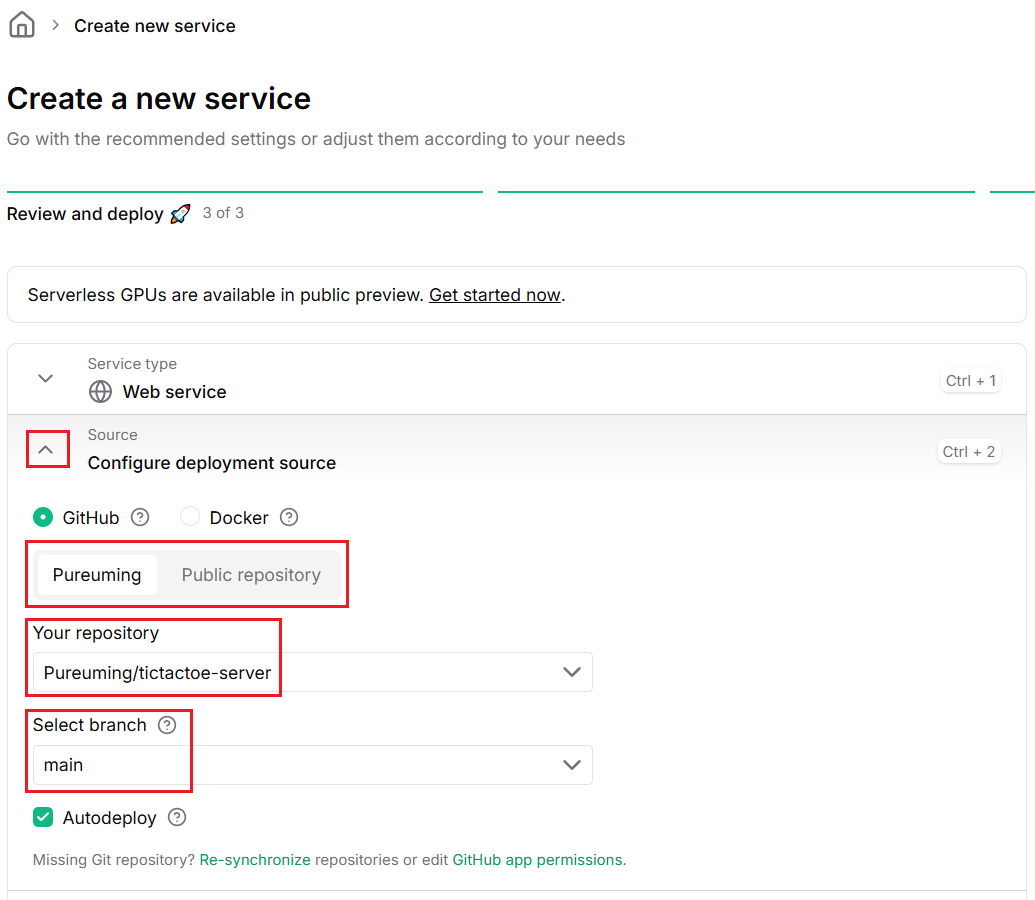

4. service 선택

: Source에서 repository 선택

--> 마찬가지로 public repository라면 URL로, 아니라면 연결한 것 선택, 이후 Deploy 클릭



5. Build

: 이것까지 완료되면 게임 서버가 배포될 것

--> 자동으로 완료된다.

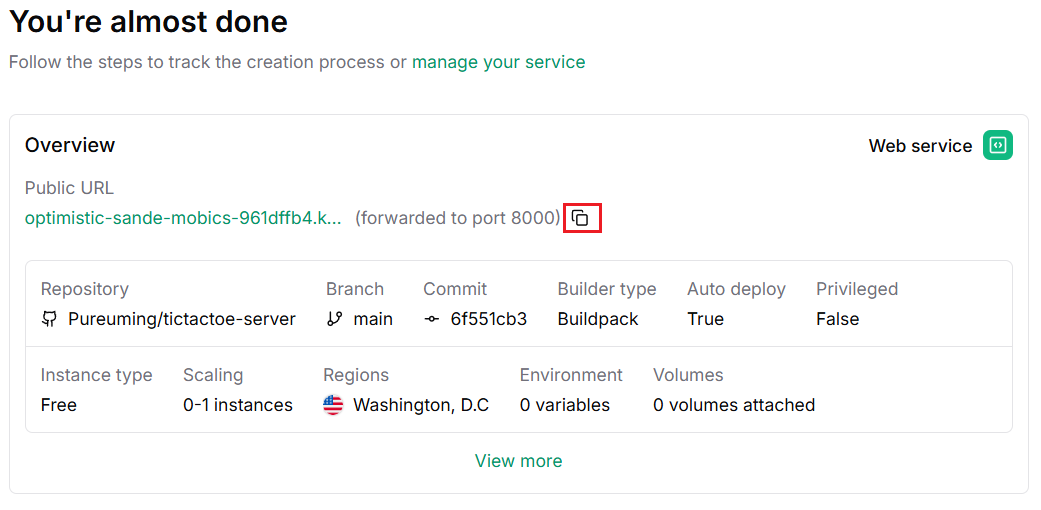

6. Public URL 설정

: client에 있는 서버 URL을 나온 Public URL로 바꿔야 한다.

--> Overview에 있는 Public URL 복사

--> Constants.cs에 있는 serverURL과 GameServerURL을 수정

• ServerURL 앞의 'http://'와 뒤의 ':3000' 는 그대로 유지하고 중간에 붙여넣기
• GameServerURL 앞의 'ws://'와 뒤의 ':3000' 는 그대로 유지하고 중간에 붙여넣기

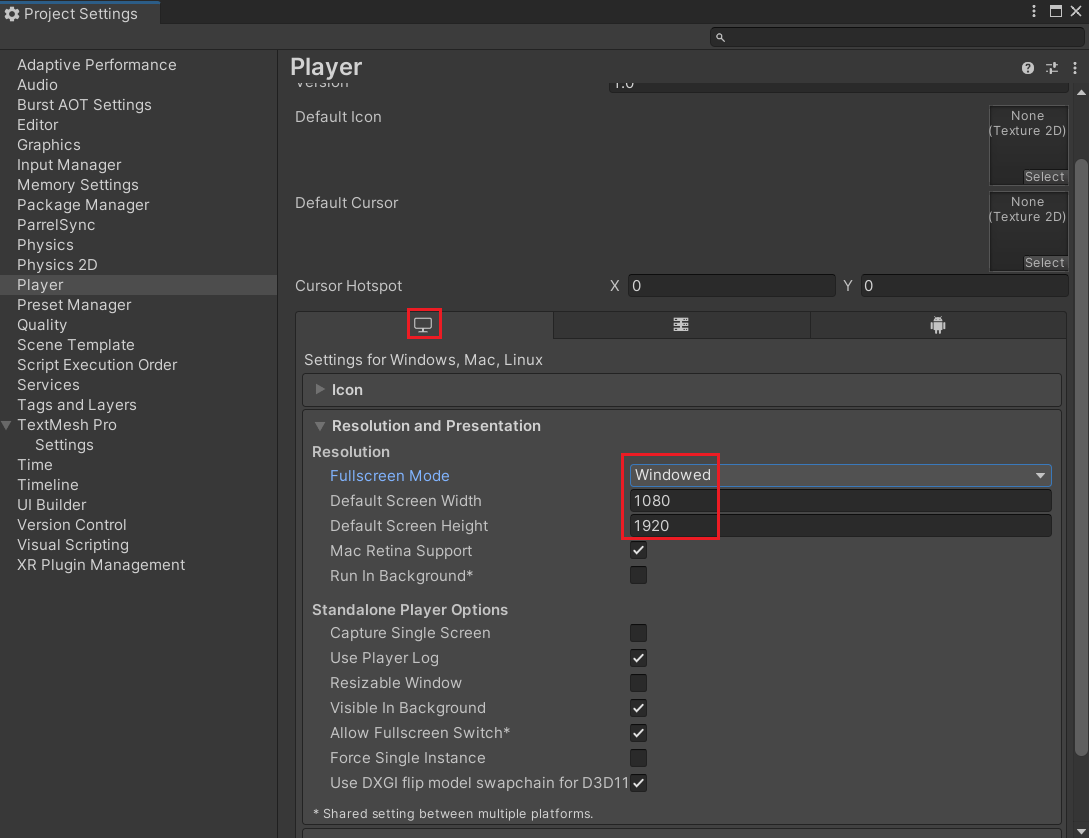

※ Window로 테스트할 때 설정

: 설정을 바꾼 뒤 Build



최종 코드

>> GameManager.cs

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.SceneManagement;

public class GameManager : Singleton<GameManager>
{
    [SerializeField] private GameObject settingsPanel;
    [SerializeField] private GameObject confirmPanel;
    [SerializeField] private GameObject signinPanel;
    [SerializeField] private GameObject signupPanel;

    private GameUIController _gameUIController;
    private Canvas _canvas;

    private Constants.GameType _gameType;
    private GameLogic _gameLogic;

    private void Start()
    {
        // 로그인
        //OpenSigninPanel();
    }

    public void ChangeToGameScene(Constants.GameType gameType)
    {
        _gameType = gameType;
        SceneManager.LoadScene("Game");
    }

    public void ChangeToMainScene()
    {
        _gameLogic?.Dispose();
        _gameLogic = null;
        SceneManager.LoadScene("Main");
    }

    public void OpenSettingsPanel()
    {
        if (_canvas != null)
        {
            var settingsPanelObject = Instantiate(settingsPanel, _canvas.transform);
            settingsPanelObject.GetComponent<PanelController>().Show();
        }
    }

    public void OpenConfirmPanel(string message, ConfirmPanelController.OnConfirmButtonClick onConfirmButtonClick)
    {
        if (_canvas != null)
        {
            var confirmPanelObject = Instantiate(confirmPanel, _canvas.transform);
            confirmPanelObject.GetComponent<ConfirmPanelController>()
                .Show(message, onConfirmButtonClick);
        }
    }

    public void OpenSigninPanel()
    {
        if (_canvas != null)
        {
            var signinPanelObject = Instantiate(signinPanel, _canvas.transform);
        }
    }

    public void OpenSignupPanel()
    {
        if (_canvas != null)
        {
            var signupPanelObject = Instantiate(signupPanel, _canvas.transform);
        }
    }

    public void OpenGameOverPanel()
    {
        _gameUIController.SetGameUIMode(GameUIController.GameUIMode.GameOver);
    }

    protected override void OnSceneLoaded(Scene scene, LoadSceneMode mode)
    {
        if (scene.name == "Game")
        {
            // Scene에 배치된 Object 찾기 (BlockController, GameUIController)
            var blockController = GameObject.FindObjectOfType<BlockController>();
            _gameUIController = GameObject.FindObjectOfType<GameUIController>();

            // BlockController 초기화
            blockController.InitBlocks();

            // Game UI 초기화
            _gameUIController.SetGameUIMode(GameUIController.GameUIMode.Init);

            // Game Logic 객체 생성 --> 생성자 호출
            if (_gameLogic != null) _gameLogic.Dispose();
            _gameLogic = new GameLogic(blockController, _gameType);
        }

        // Canvas는 Main과 Game 모두 필요하기 때문에 if 밖에서 찾음
        _canvas = GameObject.FindObjectOfType<Canvas>();
    }

    private void OnApplicationQuit()
    {
        _gameLogic?.Dispose();
        _gameLogic = null;
    }
}



>> GameLogic.cs

using System;
using UnityEngine;

public abstract class BasePlayerState
{
    public abstract void OnEnter(GameLogic gameLogic);  // 해당 State가 할당될 때 처리
    public abstract void OnExit(GameLogic gameLogic);   // 해당 State가 교체될 때 처리
    public abstract void HandleMove(GameLogic gameLogic, int row, int col); // 해당 State의 행위에 따라 마커 표시
    protected abstract void HandleNextTurn(GameLogic gameLogic);    // State 전환

    // 마커 표시 및 결과 처리
    protected void ProcessMove(GameLogic gameLogic, Constants.PlayerType playerType, int row, int col)
    {
        if (gameLogic.SetNewBoardValue(playerType, row, col))
        {
            var gameResult = gameLogic.CheckGameResult();

            if (gameResult == GameLogic.GameResult.None)
            {
                HandleNextTurn(gameLogic);
            }
            else
            {
                gameLogic.EndGame(gameResult);
            }
        }
    }
}

// 직접 플레이 (싱글, 네트워크)
public class PlayerState : BasePlayerState
{
    private Constants.PlayerType _playerType;
    private bool _isFirstPlayer;

    private MultiplayManager _multiplayManager;
    private string _roomId;
    private bool _isMultiplay;

    public PlayerState(bool isFirstPlayer)
    {
        _isFirstPlayer = isFirstPlayer;
        _playerType = _isFirstPlayer ? Constants.PlayerType.PlayerA : Constants.PlayerType.PlayerB;
        _isMultiplay = false;
    }

    public PlayerState(bool isFirstPlayer, MultiplayManager multiplayManager, string roomId) : this(isFirstPlayer)
    {
        _multiplayManager = multiplayManager;
        _roomId = roomId;
        _isMultiplay = true;
    }

    public override void OnEnter(GameLogic gameLogic)
    {
        gameLogic.blockController.OnBlockClickedDelegate = (row, col) =>
        {
            HandleMove(gameLogic, row, col);
        };
    }

    public override void OnExit(GameLogic gameLogic)
    {
        gameLogic.blockController.OnBlockClickedDelegate = null; // 게임이 끝났을 때 board를 Click해도 바뀌지 않도록
    }

    public override void HandleMove(GameLogic gameLogic, int row, int col)
    {
        ProcessMove(gameLogic, _playerType, row, col);
        if (_isMultiplay)
        {
            _multiplayManager.SendPlayerMove(_roomId, row * 3 + col);
        }
    }

    protected override void HandleNextTurn(GameLogic gameLogic)
    {
        if (_isFirstPlayer)
        {
            gameLogic.SetState(gameLogic.secondPlayerState);
        }
        else
        {
            gameLogic.SetState(gameLogic.firstPlayerState);
        }
    }
}

// AI 플레이
public class AIState : BasePlayerState
{
    public override void OnEnter(GameLogic gameLogic)
    {
        // AI 연산
        var result = MinimaxAIController.GetBestMove(gameLogic.GetBoard());
        if (result.HasValue)
        {
            HandleMove(gameLogic, result.Value.row, result.Value.col);
        }
        else
        {
            gameLogic.EndGame(GameLogic.GameResult.Draw);
        }
    }

    public override void OnExit(GameLogic gameLogic)
    {
    }

    public override void HandleMove(GameLogic gameLogic, int row, int col)
    {
        ProcessMove(gameLogic, Constants.PlayerType.PlayerB, row, col);
    }

    protected override void HandleNextTurn(GameLogic gameLogic)
    {
        gameLogic.SetState(gameLogic.firstPlayerState);
    }
}

// 네트워크 플레이 --> 서버로부터 상대 Player를 기다림
public class MultiplayState : BasePlayerState
{
    private Constants.PlayerType _playerType;
    private bool _isFirstPlayer;

    private MultiplayManager _multiplayManager;

    public MultiplayState(bool isFirstPlayer, MultiplayManager multiplayManager)
    {
        _isFirstPlayer = isFirstPlayer;
        _playerType = _isFirstPlayer ? Constants.PlayerType.PlayerA : Constants.PlayerType.PlayerB;
        _multiplayManager = multiplayManager;
    }

    public override void OnEnter(GameLogic gameLogic)
    {
        _multiplayManager.OnOpponentMove = moveData =>
        {
            var row = moveData.position / 3;
            var col = moveData.position % 3;
            UnityThread.executeInUpdate(() =>
            {
                HandleMove(gameLogic, row, col);
            });
        };
    }

    public override void OnExit(GameLogic gameLogic)
    {
        _multiplayManager.OnOpponentMove = null;
    }

    public override void HandleMove(GameLogic gameLogic, int row, int col)
    {
        ProcessMove(gameLogic, _playerType, row, col);
    }

    protected override void HandleNextTurn(GameLogic gameLogic)
    {
        if (_isFirstPlayer)
        {
            gameLogic.SetState(gameLogic.secondPlayerState);
        }
        else
        {
            gameLogic.SetState(gameLogic.firstPlayerState);
        }
    }
}

public class GameLogic : IDisposable
{
    public BlockController blockController;
    private Constants.PlayerType[,] _board;

    public BasePlayerState firstPlayerState;      // 첫 번째 턴 상태 객체
    public BasePlayerState secondPlayerState;     // 두 번째 턴 상태 객체
    private BasePlayerState _currentPlayerState;  // 현재 턴 상태 객체

    private MultiplayManager _multiplayManager;
    private string _roomId;

    public enum GameResult { None, Win, Lose, Draw }

    public GameLogic(BlockController blockController, Constants.GameType gameType,
        MultiplayManager multiplayManager = null, string roomId = null, bool isFirstPlayer = true)
    {
        this.blockController = blockController;

        // _board 초기화
        _board = new Constants.PlayerType[3, 3];

        switch (gameType)
        {
            case Constants.GameType.SinglePlayer:
                firstPlayerState = new PlayerState(true);
                secondPlayerState = new AIState();
                // 게임 시작
                SetState(firstPlayerState);
                break;
            case Constants.GameType.DualPlayer:
                firstPlayerState = new PlayerState(true);
                secondPlayerState = new PlayerState(false);
                // 게임 시작
                SetState(firstPlayerState);
                break;
            case Constants.GameType.MultiPlayer:
                // Multiplay Manager 생성
                _multiplayManager = new MultiplayManager((state, roomId) =>
                {
                    _roomId = roomId;
                    switch (state)
                    {
                        case Constants.MultiplayManagerState.CreateRoom:
                            Debug.Log("## Create Room ##");
                            // TODO: 대기 화면 표시
                            // GameManager에게 대기 화면 표시 요청
                            break;
                        case Constants.MultiplayManagerState.JoinRoom: // 게임 실행 --> Room에 입장한 사람
                            Debug.Log("## Join Room ##");
                            firstPlayerState = new MultiplayState(true, _multiplayManager);
                            secondPlayerState = new PlayerState(false, _multiplayManager, roomId);
                            // 게임 시작
                            SetState(firstPlayerState);
                            break;
                        case Constants.MultiplayManagerState.ExitRoom:
                            Debug.Log("## Exit Room ##");
                            // TODO: Exit Room 처리
                            break;
                        case Constants.MultiplayManagerState.StartGame: // 대기 화면을 닫고 게임 실행 --> Create Room을 한 사람
                            Debug.Log("## Start Game ##");
                            firstPlayerState = new PlayerState(true, _multiplayManager, roomId);
                            secondPlayerState = new MultiplayState(false, _multiplayManager);
                            // 게임 시작
                            SetState(firstPlayerState);
                            break;
                        case Constants.MultiplayManagerState.EndGame:
                            Debug.Log("## End Game ##");
                            // TODO: End Game 처리
                            break;
                    }
                });
                break;
        }
    }

    public void SetState(BasePlayerState state)
    {
        _currentPlayerState?.OnExit(this);
        _currentPlayerState = state;
        _currentPlayerState?.OnEnter(this);
    }

    /// <summary>
    /// _board에 새로운 값을 할당하는 함수
    /// </summary>
    /// <param name="playerType">할당하고자 하는 플레이어 타입</param>
    /// <param name="row">Row</param>
    /// <param name="col">Col</param>
    /// <returns>False : 할당할 수 없음, True : 할당이 완료됨</returns>
    public bool SetNewBoardValue(Constants.PlayerType playerType, int row, int col)
    {
        if (_board[row, col] != Constants.PlayerType.None) return false; // 중복 체크 방지

        if (playerType == Constants.PlayerType.PlayerA)
        {
            _board[row, col] = playerType;
            blockController.PlaceMarker(Block.MarkerType.O, row, col);
            return true;
        }
        else if (playerType == Constants.PlayerType.PlayerB)
        {
            _board[row, col] = playerType;
            blockController.PlaceMarker(Block.MarkerType.X, row, col);
            return true;
        }
        return false;
    }

    /// <summary>
    /// 게임 결과 확인 함수
    /// </summary>
    /// <returns>플레이어 기준 게임 결과</returns>
    public GameResult CheckGameResult()
    {
        if (CheckGameWin(Constants.PlayerType.PlayerA)) return GameResult.Win;
        if (CheckGameWin(Constants.PlayerType.PlayerB)) return GameResult.Lose;
        if (MinimaxAIController.IsAllBlocksPlaced(_board)) return GameResult.Draw;

        return GameResult.None;
    }

    // 게임의 승패를 판단하는 함수
    private bool CheckGameWin(Constants.PlayerType playerType)
    {
        // 가로로 마커가 일치하는지 확인
        for (var row = 0; row < _board.GetLength(0); row++)
        {
            if (_board[row, 0] == playerType && _board[row, 1] == playerType && _board[row, 2] == playerType)
            {
                (int, int)[] blocks = { (row, 0), (row, 1), (row, 2) };
                blockController.SetBlockColor(playerType, blocks);
                return true;
            }
        }

        // 세로로 마커가 일치하는지 확인
        for (var col = 0; col < _board.GetLength(1); col++)
        {
            if (_board[0, col] == playerType && _board[1, col] == playerType && _board[2, col] == playerType)
            {
                (int, int)[] blocks = { (0, col), (1, col), (2, col) };
                blockController.SetBlockColor(playerType, blocks);
                return true;
            }
        }

        // 대각선으로 마커가 일치하는지 확인
        if (_board[0, 0] == playerType && _board[1, 1] == playerType && _board[2, 2] == playerType)
        {
            (int, int)[] blocks = { (0, 0), (1, 1), (2, 2) };
            blockController.SetBlockColor(playerType, blocks);
            return true;
        }

        if (_board[0, 2] == playerType && _board[1, 1] == playerType && _board[2, 0] == playerType)
        {
            (int, int)[] blocks = { (0, 2), (1, 1), (2, 0) };
            blockController.SetBlockColor(playerType, blocks);
            return true;
        }

        return false;
    }

    /// <summary>
    /// 게임 오버 시, 호출되는 함수
    /// gameResult에 따라 결과 출력
    /// </summary>
    /// <param name="gameResult">win, lose, draw</param>
    public void EndGame(GameResult gameResult)
    {
        SetState(null);

        firstPlayerState = null;
        secondPlayerState = null;

        // 게임 오버 표시
        GameManager.Instance.OpenGameOverPanel();
    }

    public Constants.PlayerType[,] GetBoard()
    {
        return _board;
    }

    public void Dispose()
    {
        _multiplayManager?.LeaveRoom(_roomId);
        _multiplayManager?.Dispose();
    }
}



>> MultiplayManager.cs

using System;
using System.Collections;
using System.Collections.Generic;
using Newtonsoft.Json;
using UnityEngine;
using SocketIOClient;

// game.js 에서 보내는 값을 받음
public class RoomData
{
    [JsonProperty("roomId")]
    public string roomId { get; set; }
}

public class UserData
{
    [JsonProperty("userId")]
    public string userId { get; set; }
}

public class MoveData
{
    [JsonProperty("position")]
    public int position { get; set; }
}

public class MessageData
{
    [JsonProperty("nickName")]
    public string nickName { get; set; }
    [JsonProperty("message")]
    public string message { get; set; }
}

public class MultiplayManager : IDisposable
{
    private SocketIOUnity _socket;
    private event Action<Constants.MultiplayManagerState, string> _onMultiplayStateChanged;
    public Action<MoveData> OnOpponentMove;
    public Action<MessageData> OnReceivedMessage;

    public MultiplayManager(Action<Constants.MultiplayManagerState, string> onMultiplayStateChanged)
    {
        _onMultiplayStateChanged = onMultiplayStateChanged;

        var uri = new Uri(Constants.GameServerURL);
        _socket = new SocketIOUnity(uri, new SocketIOOptions
        {
            Transport = SocketIOClient.Transport.TransportProtocol.WebSocket
        });

        // 서버가 보낼 event(message)에 따라 작동
        // "createRoom"이라는 event가 왔을 때 CreateRoom이 작동하도록 CreateRoom()이라고 적지 않는다.
        _socket.On("createRoom", CreateRoom);
        _socket.On("joinRoom", JoinRoom);
        _socket.On("exitRoom", ExitRoom);
        _socket.On("startGame", StartGame);
        _socket.On("endGame", EndGame);
        _socket.On("doOpponent", DoOpponent);
        _socket.On("receiveMessage", ReceiveMessage);

        _socket.Connect();
    }

    private void CreateRoom(SocketIOResponse response)  // 매개변수로 SocketIOResponse가 필수로 있어야 한다.
    {
        var data = response.GetValue<RoomData>();
        _onMultiplayStateChanged?.Invoke(Constants.MultiplayManagerState.CreateRoom, data.roomId);
    }

    private void JoinRoom(SocketIOResponse response)
    {
        var data = response.GetValue<RoomData>();
        _onMultiplayStateChanged?.Invoke(Constants.MultiplayManagerState.JoinRoom, data.roomId);
    }

    private void ExitRoom(SocketIOResponse response)
    {
        _onMultiplayStateChanged?.Invoke(Constants.MultiplayManagerState.ExitRoom, null);
    }

    private void StartGame(SocketIOResponse response)
    {
        var data = response.GetValue<RoomData>();
        _onMultiplayStateChanged?.Invoke(Constants.MultiplayManagerState.StartGame, data.roomId);
    }

    private void EndGame(SocketIOResponse response)
    {
        _onMultiplayStateChanged?.Invoke(Constants.MultiplayManagerState.EndGame, null);
    }

    // 서버로부터 상대방의 마커 정보를 받기 위한 Method
    private void DoOpponent(SocketIOResponse response)
    {
        var data = response.GetValue<MoveData>();
        OnOpponentMove?.Invoke(data);
    }

    // Player의 마커 위치를 서버로 전달하기 위한 Method
    public void SendPlayerMove(string roomId, int position)
    {
        _socket.Emit("doPlayer", new { roomId, position });
    }

    // 서버로부터 Message를 받음
    private void ReceiveMessage(SocketIOResponse response)
    {
        var data = response.GetValue<MessageData>();
        OnReceivedMessage?.Invoke(data);
    }

    // 서버로 Message를 보냄
    public void SendMessage(string roomId , string nickName, string message)
    {
        _socket.Emit("sendMessage", new { roomId, nickName, message });
    }

    public void LeaveRoom(string roomId)
    {
        _socket.Emit("leaveRoom", new { roomId });
    }

    public void Dispose()
    {
        if (_socket != null)
        {
            _socket.Disconnect();
            _socket.Dispose();
            _socket = null;
        }
    }
}



>> Constants.cs

public class Constants
{
    public const string ServerURL = "http://localhost:3000";
    public const string GameServerURL = "ws://localhost:3000";

    public enum MultiplayManagerState
    {
        CreateRoom,     // 방 생성
        JoinRoom,       // 생성된 방에 참여
        ExitRoom,       // 자신이 방을 빠져 나왔을 때
        StartGame,      // 생성한 방에 다른 유저가 참여하여 게임 시작
        EndGame         // 상대방이 접속을 끊거나 방을 나갔을 때
    };

    public enum PlayerType { None, PlayerA, PlayerB }
    public enum GameType { SinglePlayer, DualPlayer, MultiPlayer }
}



>> BlockController.cs

using UnityEngine;

public class BlockController : MonoBehaviour
{
    [SerializeField] private Block[] blocks;

    public delegate void OnBlockClicked(int row, int col);
    public OnBlockClicked OnBlockClickedDelegate;

    public void InitBlocks()
    {
        for (int i = 0; i < blocks.Length; i++)
        {
            blocks[i].InitMarker(i, blockIndex =>
            {
                var clickedRow = blockIndex / 3;
                var clickedCol = blockIndex % 3;

                OnBlockClickedDelegate?.Invoke(clickedRow, clickedCol);
            });
        }
    }

    /// <summary>
    /// 특정 Block에 Marker를 표시하는 함수
    /// </summary>
    /// <param name="markerType">마커 타입</param>
    /// <param name="row">Row</param>
    /// <param name="col">Col</param>
    public void PlaceMarker(Block.MarkerType markerType, int row, int col)
    {
        // row, col을 index로 변환
        var markerIndex = row * 3 + col;

        // Block에게 마커 표시
        blocks[markerIndex].SetMarker(markerType);
    }

    public void SetBlockColor(Constants.PlayerType playerType, (int row, int col)[] blockPositions)
    {
        if (playerType == Constants.PlayerType.None) return;

        foreach (var blockPosition in blockPositions)
        {
            var blockIndex = blockPosition.row * 3 + blockPosition.col;
            Color32 markerColor;
            if (playerType == Constants.PlayerType.PlayerA)
                markerColor = new Color32(0,  166, 255, 255);
            else if (playerType == Constants.PlayerType.PlayerB)
                markerColor = new Color32(255, 0, 94, 255);
            else
                markerColor = Color.black;

            blocks[blockIndex].SetColor(markerColor);
        }
    }
}



>> MinimaxAIController.cs

using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public static class MinimaxAIController
{
    public static void printBoard(Constants.PlayerType[,] board)
    {
        string boardString = "";
        for (int row = 0; row < 3; row++)
        {
            for (int col = 0; col < 3; col++)
            {
                boardString += $"{(int)board[row, col]} ";  // PlayerType 값을 숫자로 출력
            }
            boardString += "\n";  // 한 줄 출력 후 줄 바꿈
        }
        Debug.Log("\n" + boardString);  // 콘솔 창에 보드 출력
    }

    public static (int row, int col)? GetBestMove(Constants.PlayerType[,] board)
    {
        float bestScore = -1000;
        (int row, int col)? bestMove = null;

        for (var row = 0; row < board.GetLength(0); row++)
        {
            for (var col = 0; col < board.GetLength(1); col++)
            {
                if (board[row, col] == Constants.PlayerType.None)
                {
                    board[row, col] = Constants.PlayerType.PlayerB;
                    var score = DoMinimax(board, 0, false);
                    board[row, col] = Constants.PlayerType.None;

                    if (score > bestScore)
                    {
                        bestScore = score;
                        bestMove = (row, col);
                    }
                }
            }
        }
        return bestMove;
    }

    private static float DoMinimax(Constants.PlayerType[,] board, int depth, bool isMaximizing)
    {
        if (CheckGameWin(Constants.PlayerType.PlayerA, board))
            return -10 + depth;
        if (CheckGameWin(Constants.PlayerType.PlayerB, board))
            return 10 - depth;
        if (IsAllBlocksPlaced(board))
            return 0;

        if (isMaximizing)
        {
            var bestScore = float.MinValue;
            for (var row = 0; row < board.GetLength(0); row++)
            {
                for (var col = 0; col < board.GetLength(1); col++)
                {
                    if (board[row, col] == Constants.PlayerType.None)
                    {
                        board[row, col] = Constants.PlayerType.PlayerB;
                        var score = DoMinimax(board, depth + 1, false); // 재귀함수
                        board[row, col] = Constants.PlayerType.None;
                        bestScore = Math.Max(bestScore, score); // Math.Max(a, b) : a와 b 중에 큰 값을 반환
                    }
                }
            }
            return bestScore;
        }
        else
        {
            var bestScore = float.MaxValue;
            for (var row = 0; row < board.GetLength(0); row++)
            {
                for (var col = 0; col < board.GetLength(1); col++)
                {
                    if (board[row, col] == Constants.PlayerType.None)
                    {
                        board[row, col] = Constants.PlayerType.PlayerA;
                        var score = DoMinimax(board, depth + 1, true); // 재귀함수
                        board[row, col] = Constants.PlayerType.None;
                        bestScore = Math.Min(bestScore, score); // Math.Min(a, b) : a와 b 중에 작은 값을 반환
                    }
                }
            }
            return bestScore;
        }
    }

    /// <summary>
    /// 모든 마커가 보드에 배치 되었는지 확인하는 함수
    /// </summary>
    /// <returns>True : 모두 배치</returns>
    public static bool IsAllBlocksPlaced(Constants.PlayerType[,] board)
    {
        for (var row = 0; row < board.GetLength(0); row++)
        {
            for (var col = 0; col < board.GetLength(1); col++)
            {
                if (board[row, col] == Constants.PlayerType.None)
                    return false;
            }
        }
        return true;
    }

    /// <summary>
    /// 게임의 승패를 판단하는 함수
    /// </summary>
    /// <param name="playerType"></param>
    /// <param name="board"></param>
    /// <returns></returns>
    private static bool CheckGameWin(Constants.PlayerType playerType, Constants.PlayerType[,] board)
    {
        // 가로로 마커가 일치하는지 확인
        for (var row = 0; row < board.GetLength(0); row++)
        {
            if (board[row, 0] == playerType && board[row, 1] == playerType && board[row, 2] == playerType)
                return true;
        }

        // 세로로 마커가 일치하는지 확인
        for (var col = 0; col < board.GetLength(1); col++)
        {
            if (board[0, col] == playerType && board[1, col] == playerType && board[2, col] == playerType)
                return true;
        }

        // 대각선으로 마커가 일치하는지 확인
        if (board[0, 0] == playerType && board[1, 1] == playerType && board[2, 2] == playerType)
            return true;

        if (board[0, 2] == playerType && board[1, 1] == playerType && board[2, 0] == playerType)
            return true;

        return false;
    }
}



>> MainPanelController.cs

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.SceneManagement;

public class MainPanelController : MonoBehaviour
{
    public void OnClickSinglePlayButton()
    {
        GameManager.Instance.ChangeToGameScene(Constants.GameType.SinglePlayer);
    }

    public void OnClickDualPlayButton()
    {
        GameManager.Instance.ChangeToGameScene(Constants.GameType.DualPlayer);
    }

    public void OnClickMultiplayButton()
    {
        GameManager.Instance.ChangeToGameScene(Constants.GameType.MultiPlayer);
    }

    public void OnClickSettingsButton()
    {
        GameManager.Instance.OpenSettingsPanel();
    }
}



>> game.js

const { v4: uuidv4 } = require('uuid');

module.exports = function(server) {

    const io = require('socket.io')(server);

    var rooms = [];

    var socketRooms = new Map();

    io.on('connection', function(socket) {

        // 클라이언트가 연결되면 실행되는 이벤트 핸들러

        console.log('사용자가 연결 되었습니다.');

        if (rooms.length > 0) {

            var roomId = rooms.shift();

            socket.join(roomId);

            socket.emit('joinRoom', { roomId: roomId });

            socket.to(roomId).emit('startGame', { roomId: roomId });

            socketRooms.set(socket.id, roomId);

        } else {

            var roomId = uuidv4();

            socket.join(roomId);

            socket.emit('createRoom', { roomId: roomId });

            rooms.push(roomId);

            socketRooms.set(socket.id, roomId);

        }

        socket.on('leaveRoom', function(roomData) {

            socket.leave(roomData.roomId);

            socket.emit('exitRoom');

            socket.to(roomData.roomId).emit('endGame');

            // 방 만든 후 혼자 들어갔다가 나갈 때, rooms에서 해당 방 정보 삭제

            var roomId = socketRooms.get(socket.id);

            const roomIdx = rooms.indexOf(roomId);

            if (roomIdx !== -1) {

                rooms.splice(roomIdx, 1);

                console.log('방 삭제됨 : ' + roomId);

            }

            socketRooms.delete(socket.id);

        });

        socket.on('doPlayer', function(moveData) {

            const roomId = moveData.roomId;

            const position = moveData.position;

            console.log('doPlayer 메시지를 받았습니다: ' + roomId + ' ' + position);

            socket.to(roomId).emit('doOpponent', { position: position });

        });

        socket.on('sendMessage', function(message) {

            console.log('메세지를 받았습니다 : ' + message.roomId + ' ' + message.nickName + ' : ' + message.message);

            socket.to(message.roomId).emit('receiveMessage', { nickName: message.nickName, message: message.message });

        });

        socket.on('disconnect', function() {

            console.log('사용자가 연결을 해제했습니다.');

        });

    });

}
